Dual Plasma System
Pladuo
Support up to 3Hz
Spin shot system.
15-step energy control
Products
Pladuo
Dual Plasma System
PLADUO is an instrument
used to coagulate tissues using
radiofrequency energy.
Principle of Operation
This high-frequency surgical instrument consists of a power supply,
high-frequency resonator, control panel, handpiece, and output applicator,
casters attached for easy mobility. A magnetron generates 2.45 GHz
microwave energy, which is amplified through a resonance tube and delivered
to the applicator via the handpiece. After powering on, the user selects the gas
type, heat level, and emission interval, presses the ‣ button to prepare, and
then activates emission using the handpiece button or foot switch.
The emitted energy momentarily heats tissue and induces coagulation.
MECHANISM
Supply nitrogen or argon gas
to the handpiece.
Emit plasma energy from the tip
of the handpiece
Attach the handpiece at a certain
distance from the target area
Emit plasma energy
Coagulate tissue

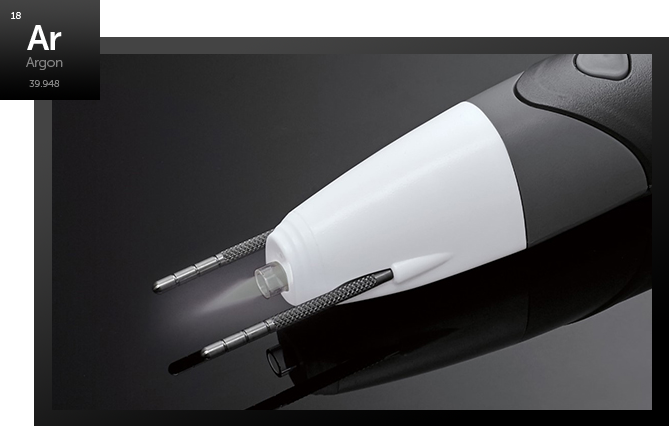

Dual plasma system
In the same device, PLADUO can select and use nitrogen plasma and argon plasma.

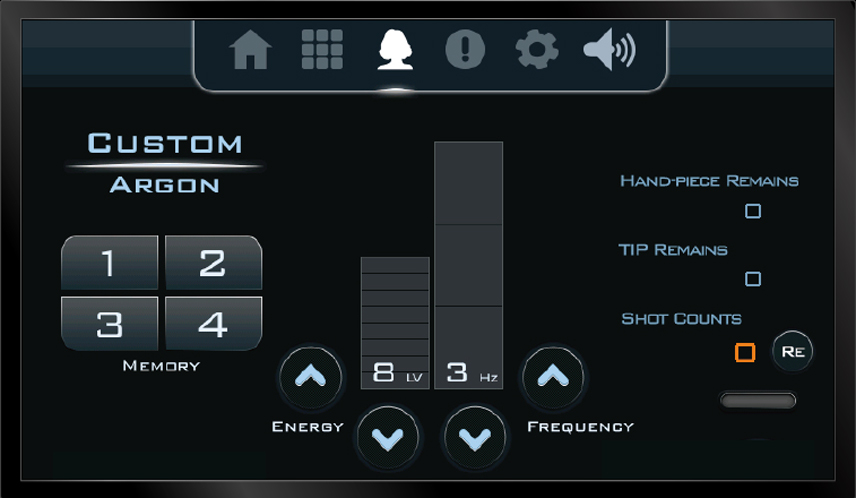

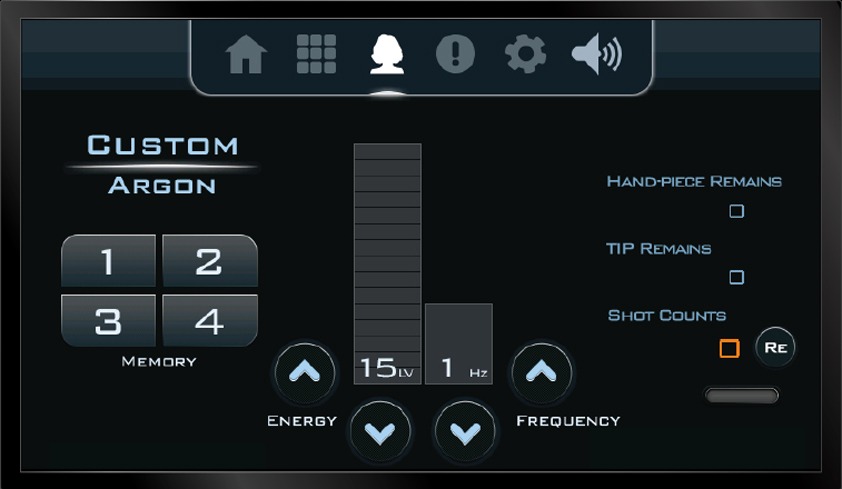

15-step energy control
PLADUO can adjust the energy more evenly with 15 steps.
Support up to 3Hz
PLADUO’s plasma formation rate is set via Hz.
PLADUO can generate plasma three times per second, at a maximum of 3Hz,
and can form and irradiate plasma 180 times per minute.

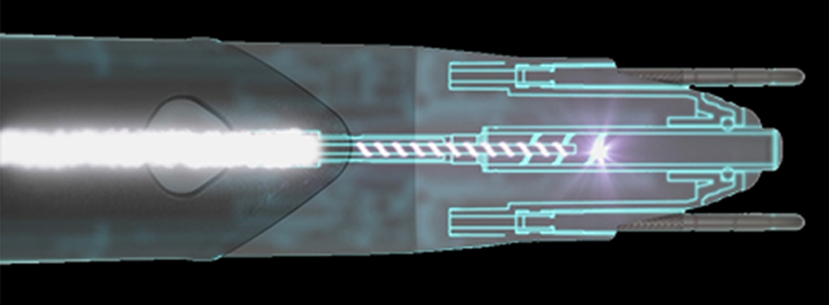

Spin shot system
For stable plasma generation, a patented spin shot system is applied.
LCD monitor
Emergency switch
Handpiece hose
Handpiece hose holder
Handpiece connector

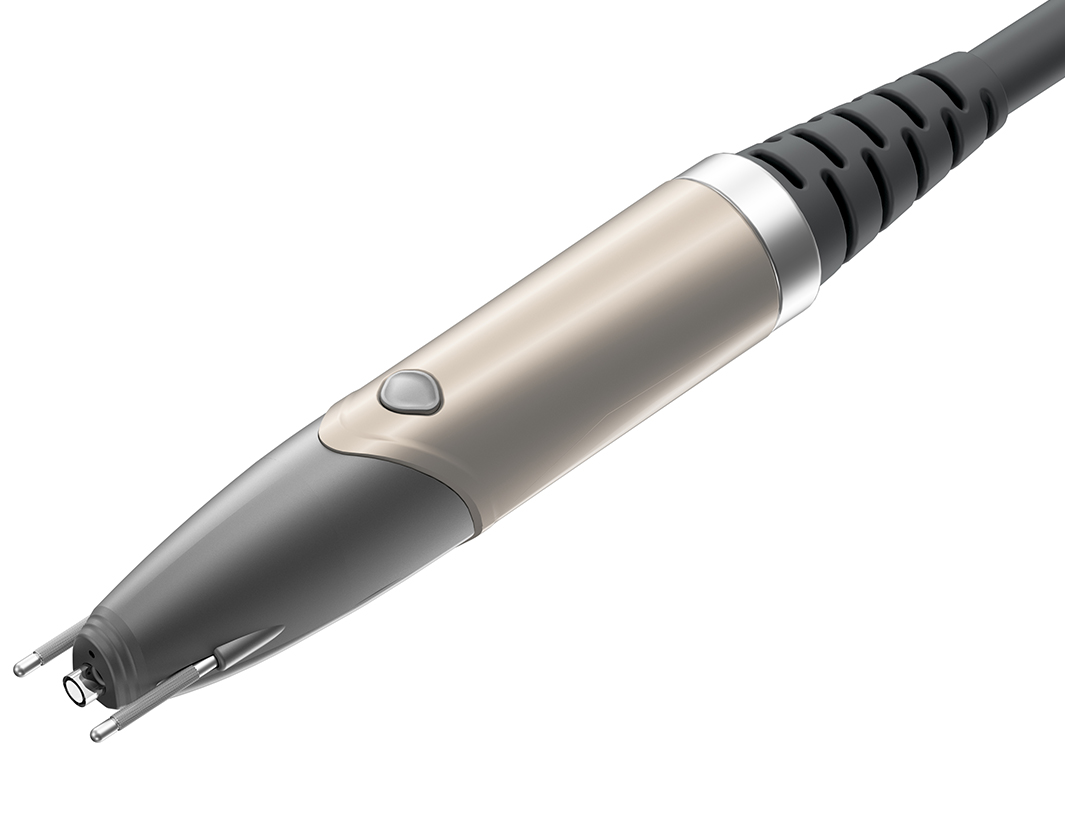

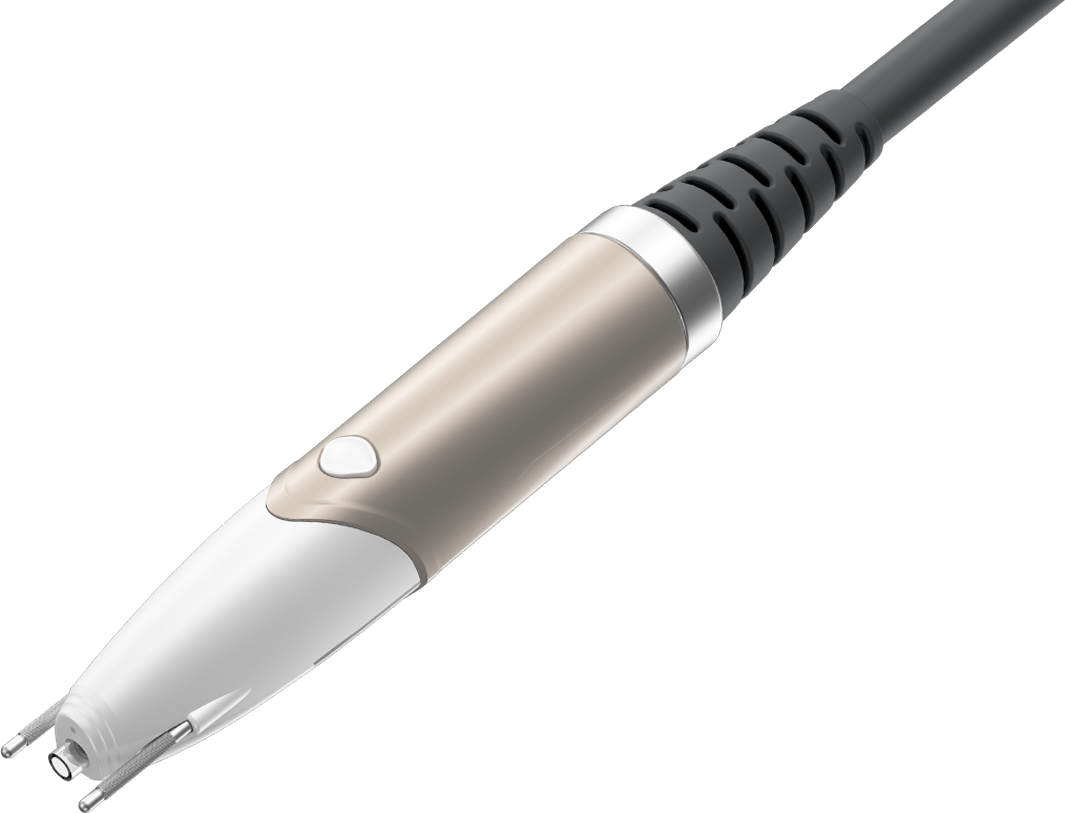

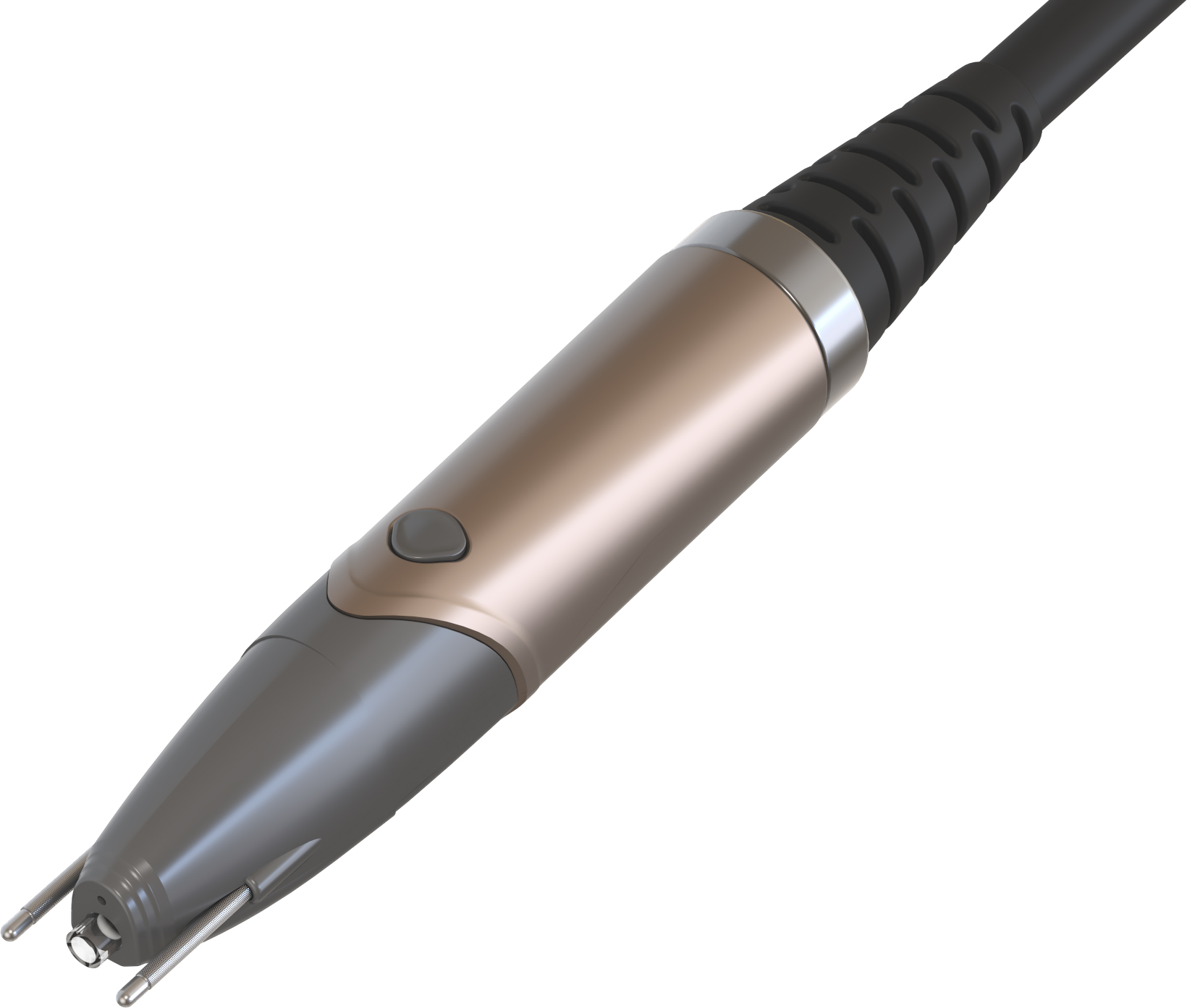

Handpiece
Handpiece holder
Component storage box
Key switch
Moving handle
Wheels

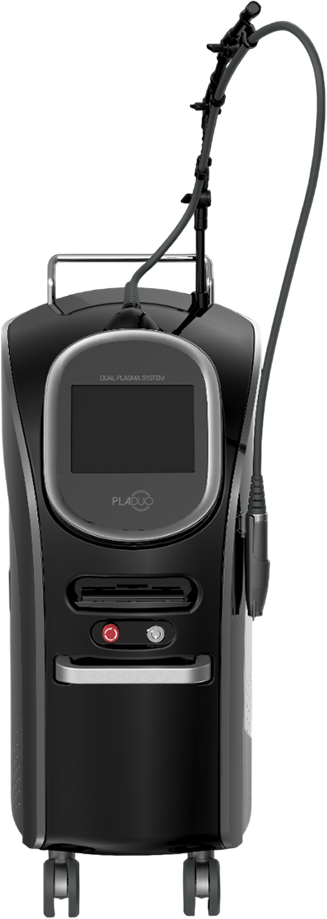

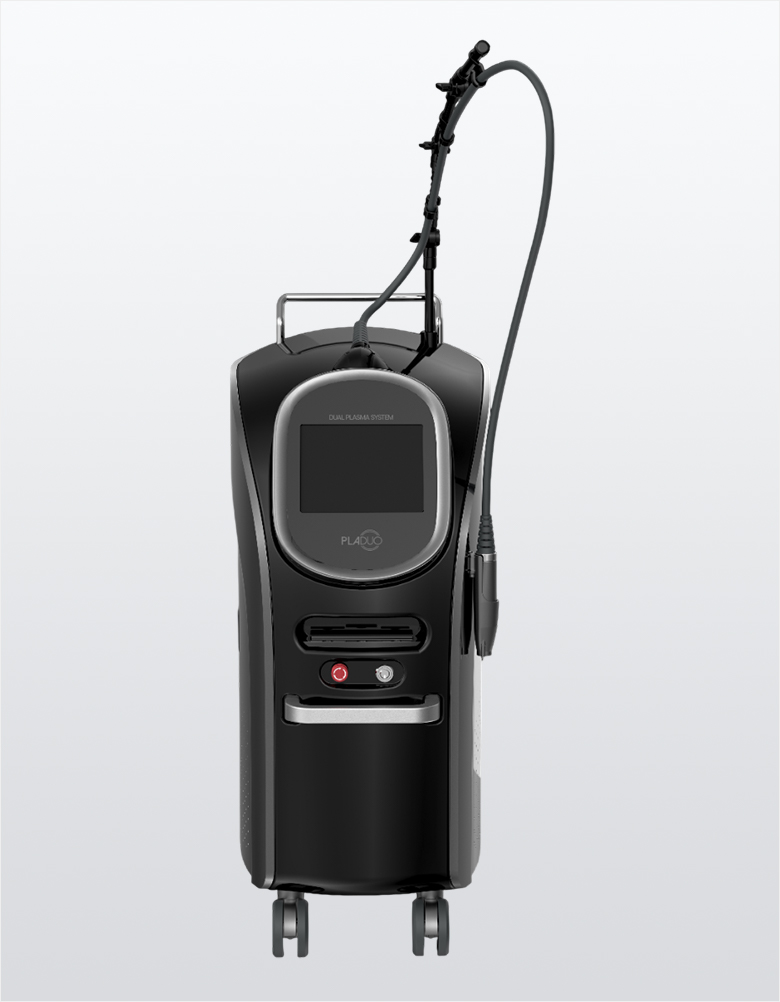

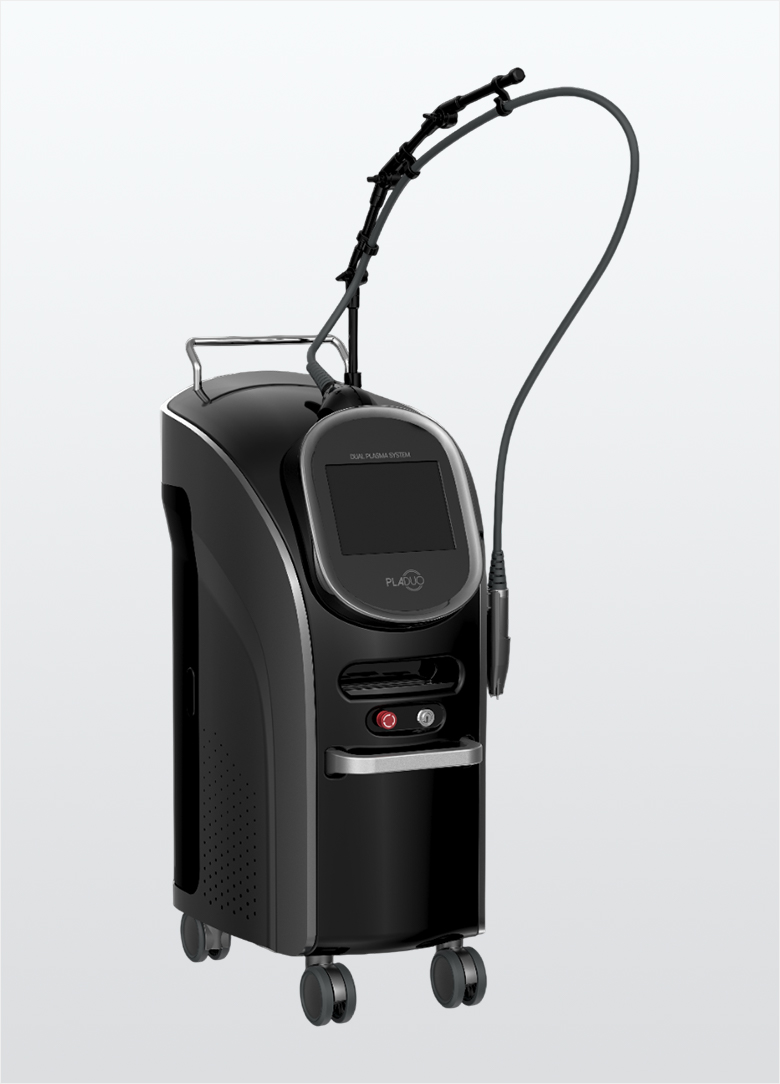

Main Body Description
Main Body Description
Main Body Description
Main Body Description
Main Body Description
Main Body Description
Main Body Description
01

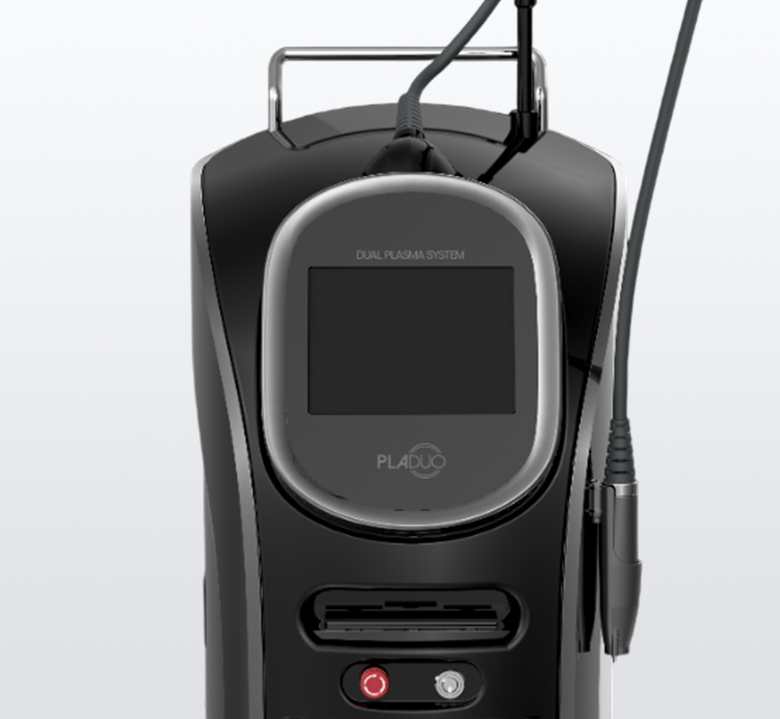

LCD monitor
02
Emergency switch
03
Handpiece hose
04
Handpiece hose holder
05
Handpiece connector
06
Handpiece
07
Handpiece holder
08
Component storage box
09
Key switch
10
Moving handle
11
Wheels
