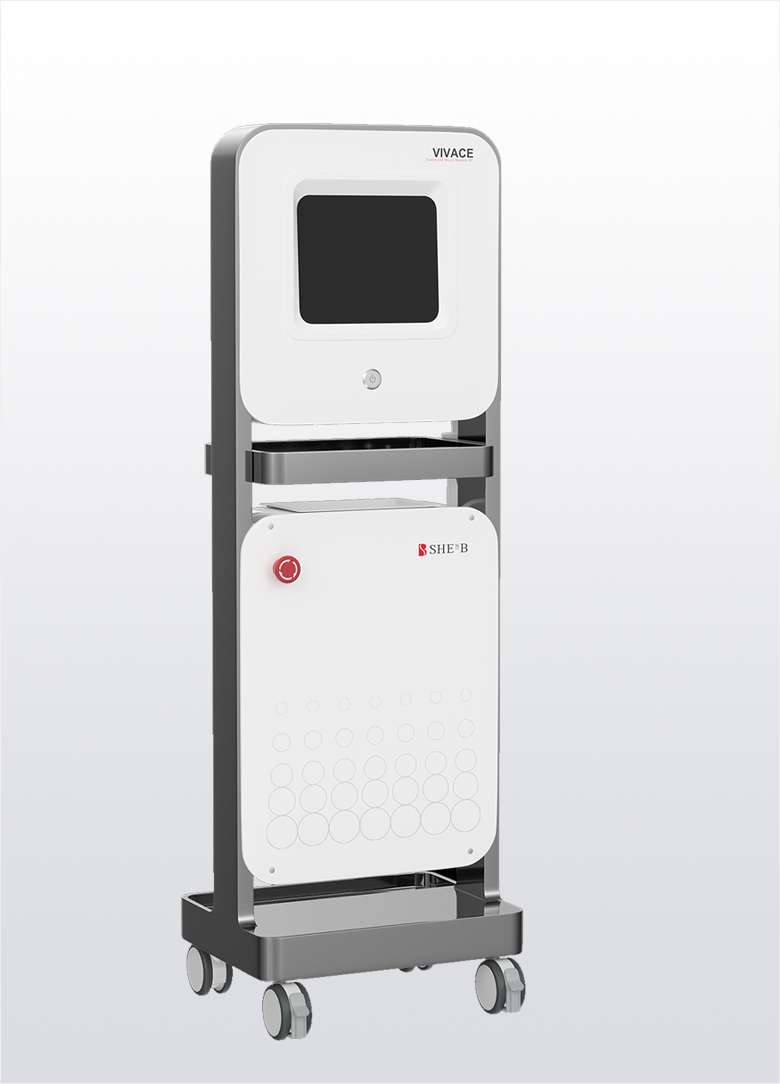

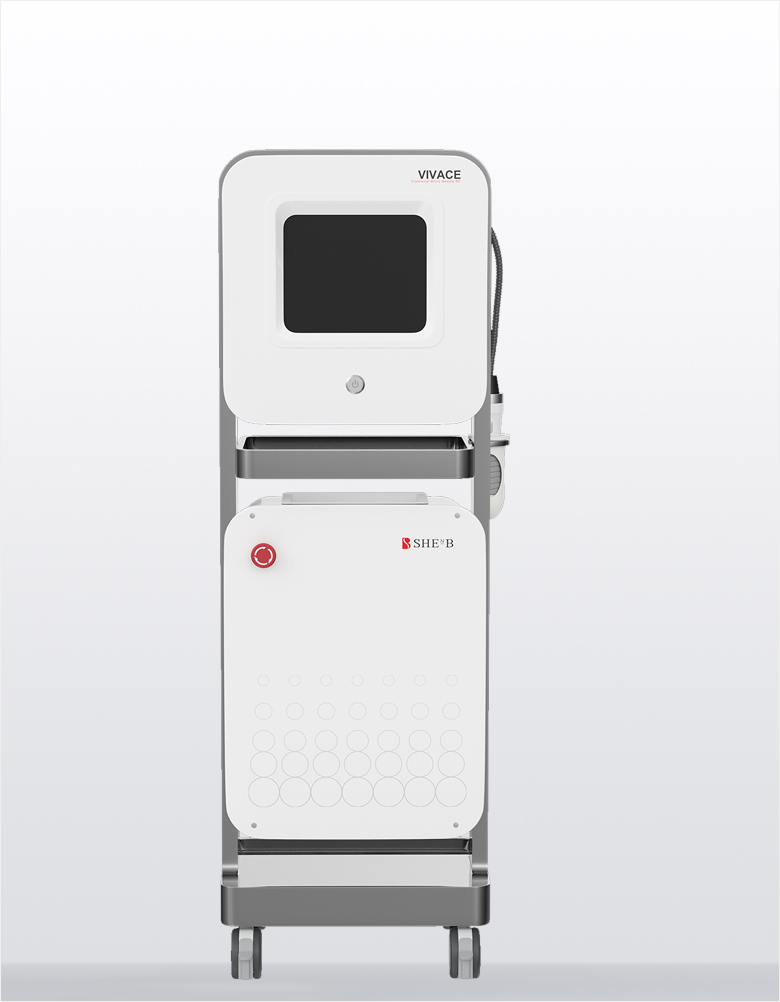

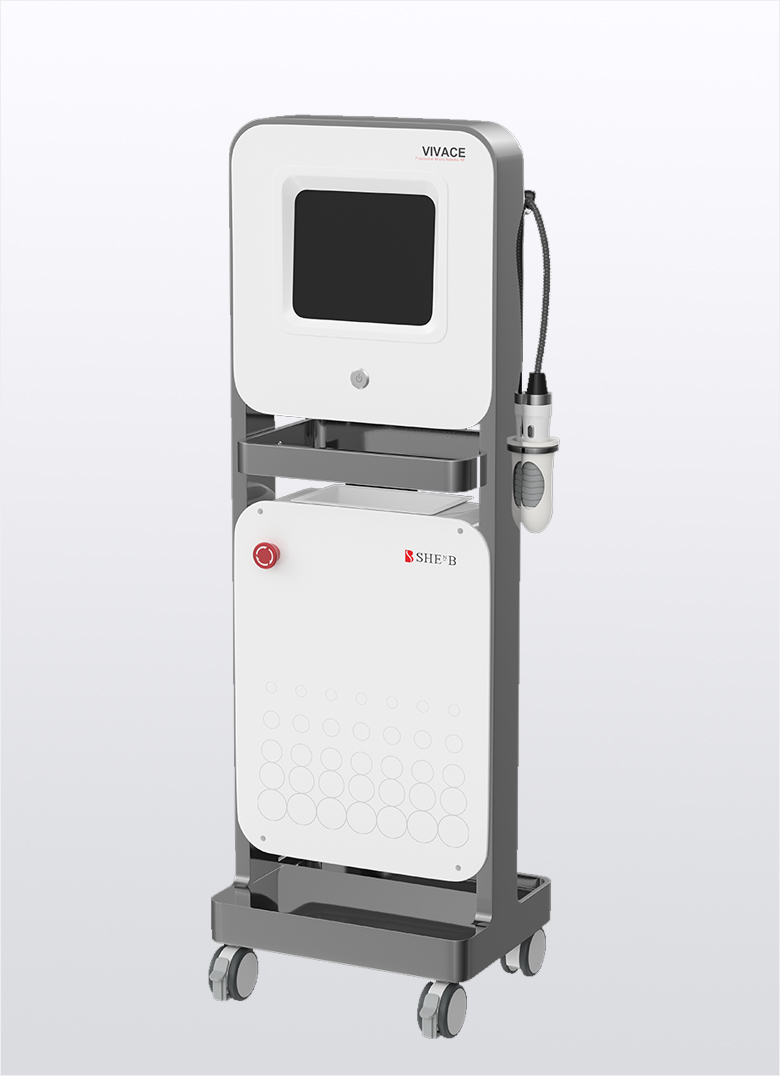

Microneedle RF
Vivace
Depth adjustable
Two MHz options - 1MHz, 2MHz
2 Type Needle
Products
Vivace
Microneedle RF
VIVACE is a medical device
used for tissue coagulation
using high-frequency currents.
Principle of Operation
When the AC 100-230 V power is supplied by power Inlet, then,
the electric power is supplied to main board through the SMPS.
The radiofrequency that is made with pulse type and amplified primarily
by the wave generator of main P.C.B assembly is secondary amplified by
the transformer of main P.C.B assembly and then
transferred to radiofrequency energy to human body by hand piece.

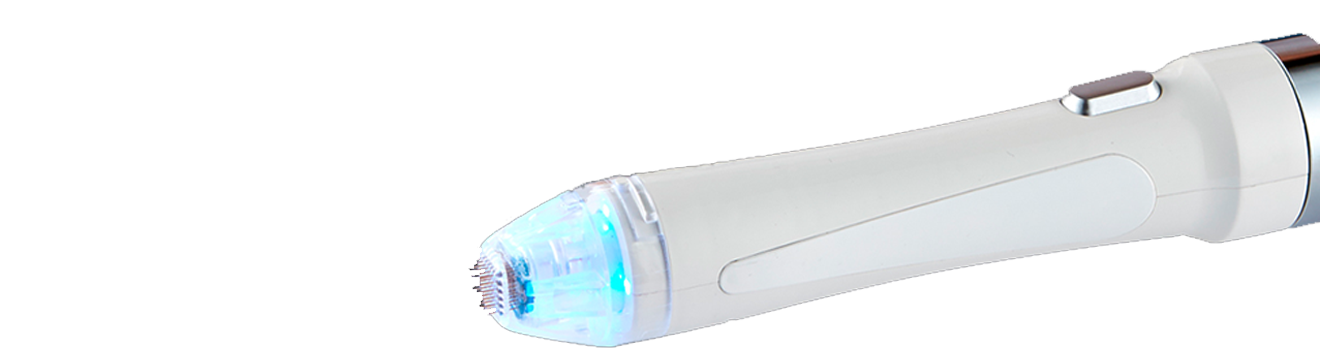

2 TYPE LED
VIVACE can choose between red and blue LEDs.
Depth adjustable in 0.1mm increments
The depth of VIVACE can be adjusted from
0.5mm to 3.5mm in 0.1mm increments
MECHANISM

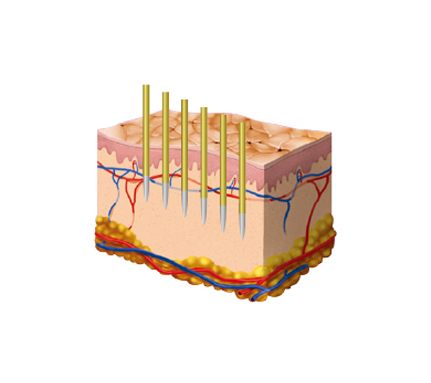

Microneedle penetration

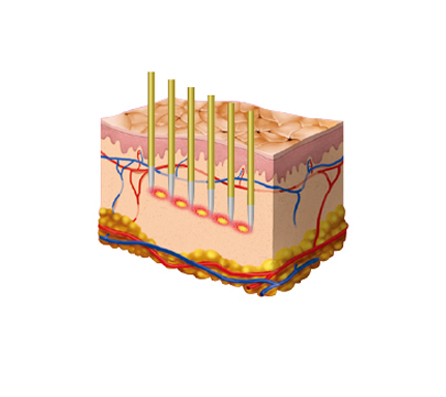

RF energy emission
New collage & elastin production
Two MHz options
VIVACE can select and use high-frequency energy of 1MHz and 2MHz.
1 MHz
2 MHz
LCD Monitor
LCD power switch
Shift knob
Emergency switch
Handpiece holder
Handpiece connector
Storage stand
Power inlet
Foot switch connector
Wheel

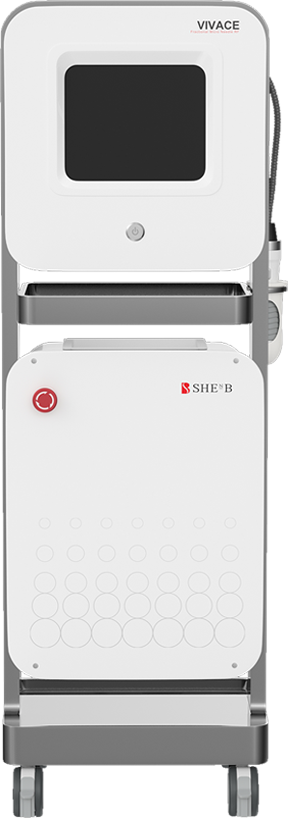

Main Body Description
Main Body Description
Main Body Description
Main Body Description
Main Body Description
Main Body Description
Main Body Description
01

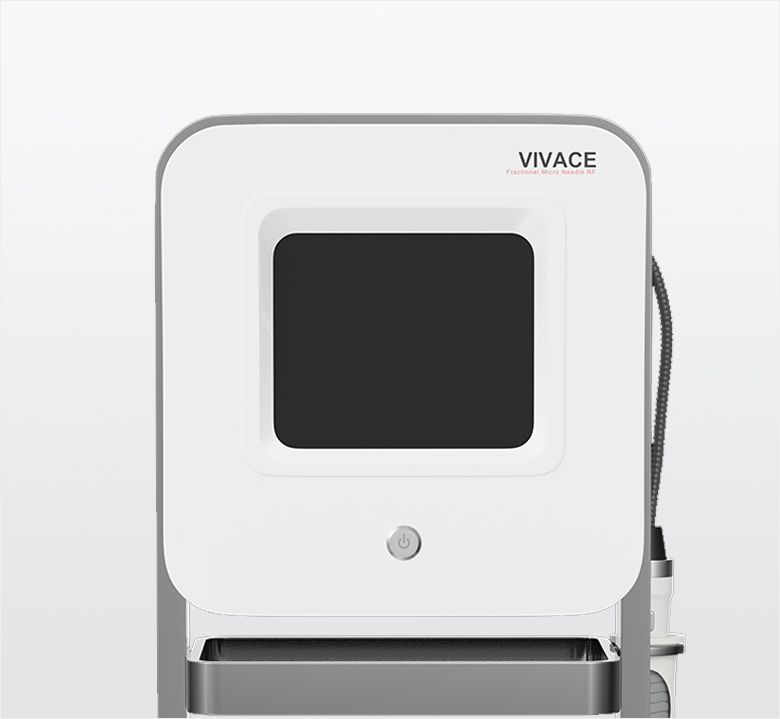

LCD Monitor
02
LCD power switch
03
Shift knob
04
Emergency switch
05
Handpiece holder
06
Handpiece connector
07
Storage stand
08

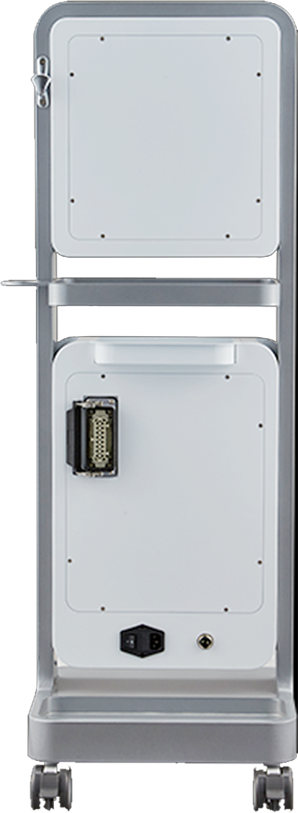

Power inlet
09
Foot switch connector
10
Wheel
